45K Temp Rise 1.2W 1A 26mm Lockpin combination cabinet lock

  • 1
  • 2

Brand Name : JUNSON

Model Number : JS-305

Certification : CE/FCC

Place of Origin : China

MOQ : 5pcs

Price : USD3.97-5.00 / pcs

Payment Terms : T/T, paypal or western Union in advance

Supply Ability : 25,000pcs per month

Delivery Time : 2-7 working days after received your payment

Packaging Details : Carton size: 35L*35W*15H (cm)

Product Name : Electric Cabinet lock

Consuming power : 1.2W

Operation Humidity : 0-80℃

Weight : 0.17kg/pcs

Materials : Steel housing

Carton Weight : 17kg/Carton

Working Type : locked when power off

Voltage : 12V / 24V DC (customized )

Temperature rise : 45K

Packing Size : 35L*35W*15H (cm)

Contact Now

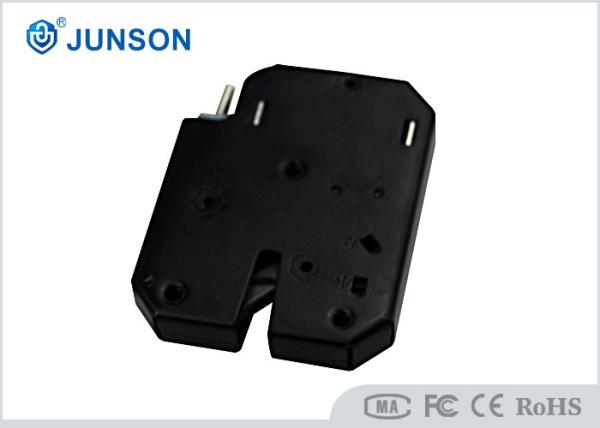

1A Black Lockpin Length 26mm 45K Temperature rise Electric Cabinet Lock

Model: JS-305

Main Feature Advantage:

  1. Metal housing, easy to install in the cabinet door.

  2. Available for any kind of cabinet, file box.

  3. Small Volume, light weight, Less power consumption, Easy installation

  4. With small with connector, and 20mm wires, easy to connect to the control board.

  5. Continues electrify no longer than 10S, to prevent the burn the coil

  6. Workable with access control, remote control or special access control power.

  7. High-strength steel, and fine copper coils, durable

  8. With Emergency open switch hidden, can open by hand in emergency condition

  9. Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.

  10. Safety, bolt’s holding force at 150kg

Lock Size Drawing

45K Temp Rise 1.2W 1A 26mm Lockpin combination cabinet lock

Parameter List

Lock Dimension 80L*60W*13H (mm)
Lockpin length 26mm
Working Type Fail secure / locked when power off
Materials: Steel housing / fine copper coils
Signal out NO/COM for JS-305S
Working Current: 1A / 0.5A
Consuming power 1.2W
Voltage 12V / 24V DC (customized )
Open time 1S
Continue power on ≦10S
Operation temperature -40℃ -50℃
Operation Humidity 0-80℃
Available All kind of Cabinet
Weight: 0.17kg/pcs
Carton size: 35L*35W*15H (cm)
Packing: 100pcs/ carton

Field installation Show

45K Temp Rise 1.2W 1A 26mm Lockpin combination cabinet lock

FAQ


Q. 1: About Price:

The price is negotiable. It can be changed according to your quantity or package.

When you are making an inquiry, please let us know the quantity you want.

Q. 2: About the sample what is the cost of transportation?

The freight depends on weight, packing size and your country or province region, etc.

You can confirm lock by photo and video to save this money.

Q. 3: How long can I expect to get the sample?

The samples will be ready for delivery in 3-5days. The samples will be sent via international express

such as DHL , UPS , TNT , FEDEX and would be arrived within 3-5 days
