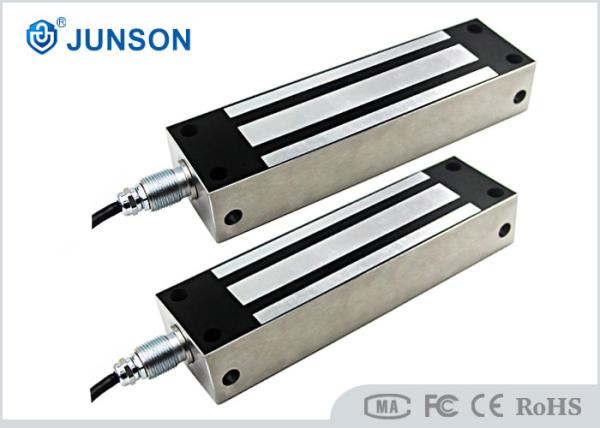

1200lbs IP68 Stainless Stee Heavy Duty Magnetic Lock
Model:JS-500W
Specifications of 1200lbs IP68 Electromagnetic Lock:
| Lock Dimension: | 223L*63W*38H(mm) |
| Armature plate dimension: | 185L*61W*15H(mm) |
| Holding force | 500kg (1200lbs) |
| Voltage : | 12 / 24V DC |
| Current : | 12 V / 500 mA, 24 V / 250 mA |
| Available bracket: | Z or L bracket |
| Materials: | Fine copper coil + Stainless steel housing |
| Surface Temp: | ≦20℃ |
| Finishes for Magnetic | Blue Zinc |
| Finishes for Armature | Blue Zinc |
| Suitable for | Door in outside |
| Operating Temp: | -10℃ - 55℃(14-131F) |
| Suitable Humidity: | 0-90% (non-condensing) |
| Waterproof rate | IP68 |
| Weight: | 4.5kg |
| Standard Packing: | 10pcs/carton |
| Cartons size: | 35L * 29W * 15H (cm) |
JS-500W single door heavy duty Magnetic Lock is suitable for door in outside. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.
Why choose us?
1.Fine cooper coils, make sure enough holding force at 500kg
2. A grade Stainless steel housing, strong enough for installation
3. IP68 Waterproof rate
4. Blue zinc plating for the locks
5. 13mm thickness Armature plate,more streng holding force.
6. Stainless steel screws,more durable
7. have CE, FCC, Rohs,MA certificate
8. Imported E shape silicon steel materials
9. Full-automatic electric soldering, to make sure E shape lock body smoothly
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Advantage of magnetic lock
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
